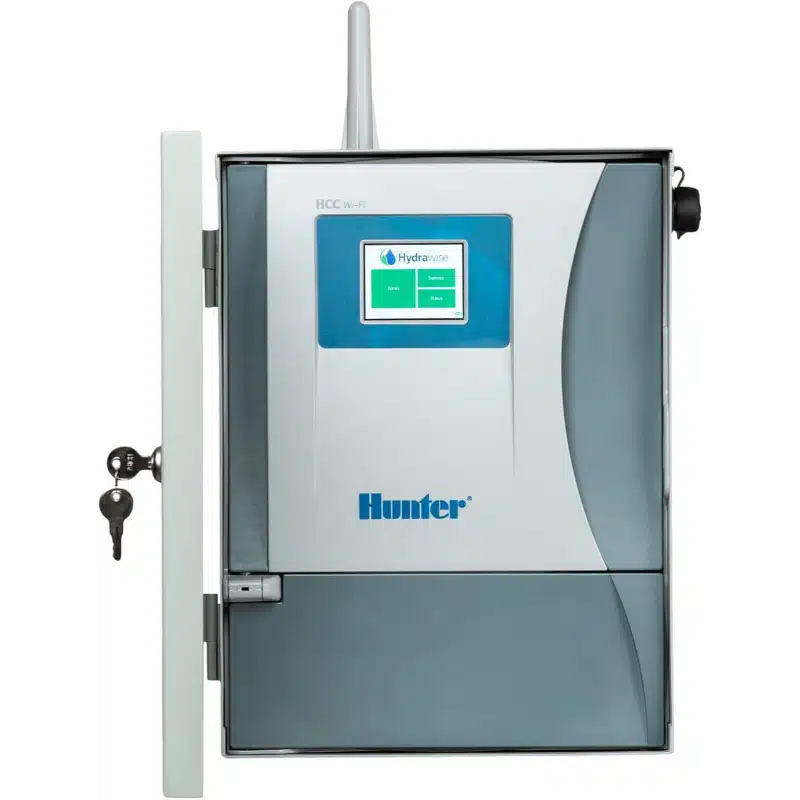

Hunter Irrigation HCC800M Hydrawise

The next-generation Hydrawise HCC controller brings the powerful Wi-Fi-based irrigation management capabilities of the industry-leading Hydrawise™ platform to high-end residential, commercial, and public-sector projects. The HCC provides a range of convenient features to monitor larger projects — all with the simple click of a button. The modular Hydrawise HCC Controller provides a range of convenient features to monitor larger projects with up to 54 stations — all with the simple click of a button. A full graphical touchscreen interface allows for programming and manual operation at the controller, with or without Wi-Fi connectivity. For maximum irrigation design flexibility, the controller also offers two-wire compatibility with the [Hunter EZ Decoder System (EZDS).](https://www.bigirrigation.com/irrigation/controllers/modules-keys/hunter-industries-ez-1-single-station-decoder-for-ez-decoder-system/) The Hydrawise HCC combines the robust features of the popular Hunter ICC2 controller with automatic, weather-based daily adjustments of Hydrawise programming to create a smart and economical solution for commercial landscape management. Hydrawise HCC can control up to 54 stations and effectively operate any two stations simultaneously. The controller’s convenient modular design allows for rapid expandability with the same 4-, 8-, and 22-station output modules as the Hunter ICC2. Engineered with a prewired SmartPort®, Hydrawise HCC is also compatible with [Hunter’s ROAM](https://www.bigirrigation.com/irrigation/controllers/remotes/hunter-industries-roam-kit-remote-kit/) and [ROAM XL remotes](https://www.bigirrigation.com/irrigation/controllers/remotes/hunter-industries-roamxl-kit-long-range-remote-kit/), allowing for fast and reliable manual operation in the field from long-range distances without the need for a smartphone. With a built-in milliamp sensor, troubleshooting faulty wires is a breeze. Easily install an HC Flow Meter to accurately monitor flow, prevent wasted water, and avoid damaged landscapes. Expandable in 4-, 8-, 22-, and 54-station increments KEY BENEFITS HCC Controller Station Options:

• Conventional: 8 to 38 (plastic), 8 to 54 (metal and pedestal)*
• With two-wire EZDS: up to 54 (all enclosure options)
• The standard programming option allows for 6 independent irrigation programs and 6 start times per program
• The advanced programming option provides station-based programming with up to 6 total start times available
• Any 2 programs or stations can operate simultaneously, providing more efficient watering
• 2 sensor inputs available for use with any Clik sensors and HC Flow Meter
• 1 P/MV output for pump start relay and master valve activation
• Wi-Fi enabled for quick connection to Hydrawise software
• 31/4" full-color touchscreen display for simple programming at the control panel
• Built-in milliamp sensor for wire fault detection and alerts

OPERATING SPECIFICATIONS

• Transformer input: 120/230 VAC
• Transformer output (24 VAC): 1.4 A
• Station output (24 VAC): 0.56 A
• P/MV output (24 VAC): 0.56 A
• 2.4 GHz (only) Wi-Fi router compatible, 802.11 b/g/n 20 MHz
• Supported security protocols: WPA/WPA2 Personal (only), TLS, SSL
• Approvals: Plastic Wall Mount IP55 (outdoor), Plastic Pedestal IP24 (outdoor), UL, cUL, FCC, CE, RCM
• Warranty period: 5 years

[TOUCHSCREEN INTERFACE (HCC)](https://www.hunterindustries.com/node/71006)

The HCC controller has a full graphical touchscreen interface, which makes programming with or without Wi-Fi connectivity and manual starting from the controller a breeze. [](https://www.bigirrigation.com/wp-content/uploads/2022/11/image.png)## [PREDICTIVE WATERING™ ADJUSTMENTS](https://www.hunterindustries.com/node/56476) Hydrawise HCC daily schedules adjustments based on local weather data monitor past, current, and forecasted temperature, rainfall, humidity, and wind speed. This allows for adjustments of watering times and schedules to balance water savings with water efficiency for plants.

[FLOW METER DETECTION AND ALERTS ](https://www.hunterindustries.com/node/56481)[(HCC)](https://www.hunterindustries.com/node/71011)

Monitor your piping and sprinklers with an optional HC Flow Meter. Receive automatic alerts when a pipe is broken to prevent property damage.

[WIRING DETECTION AND ALERTS (HCC)](https://www.hunterindustries.com/node/71011)

HCC controllers continuously monitor the electrical current flowing to your solenoid valves. If the current is too high or too low, Hydrawise will alert you and tell you which valve is not working properly. This allows you to correct a failed valve before damage is done to plant materials.

[ADVANCED SENSOR PORTS ](https://www.hunterindustries.com/node/56491)[(HCC)](https://www.hunterindustries.com/node/71011)

Two general-purpose sensor ports can be used for many different functions. Sensor port works with the Hunter HC flow meters, the Hunter Clik sensor range, and standard rain and soil sensors to stop irrigation. The sensor ports can also start an irrigation cycle. This allows you to create custom starts based on sensor readings.

[HYDRAWISE HCC EPA WATERSENSE-APPROVED SMART WATERING](https://www.hunterindustries.com/node/69426)

All Hydrawise® enabled controllers are EPA WaterSense® approved. The web-based Hydrawise Platform includes Predictive Watering® Technology that allows the controllers to maximize water savings by adjusting irrigation schedules according to forecast temperature, rainfall probability, wind speed, and humidity. Manage Landscape Irrigation from Anywhere with the Wi-Fi Enabled HCC Controller and Hydrawise Platform Achieve maximum efficiency when you combine Hydrawise cloud-based software with Hydrawise HCC irrigation controllers. The powerful Hydrawise platform equips you with the tools you need to successfully manage residential applications. Predictive Watering technology adjusts schedules based on temperature forecast, rainfall probability, wind speed, and humidity to maximize water savings while keeping landscapes healthy and beautiful. Hydrawise monitors field wiring to call attention to maintenance needs before costly landscape damage occurs. For the highest level of protection, add a simple-to-install HC Flow Meter to alert you of broken pipes or sprinklers.
