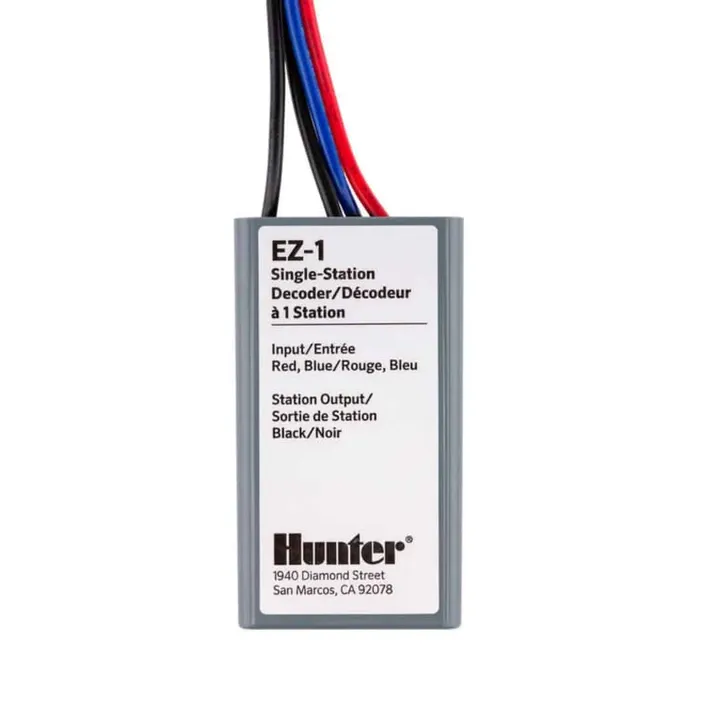

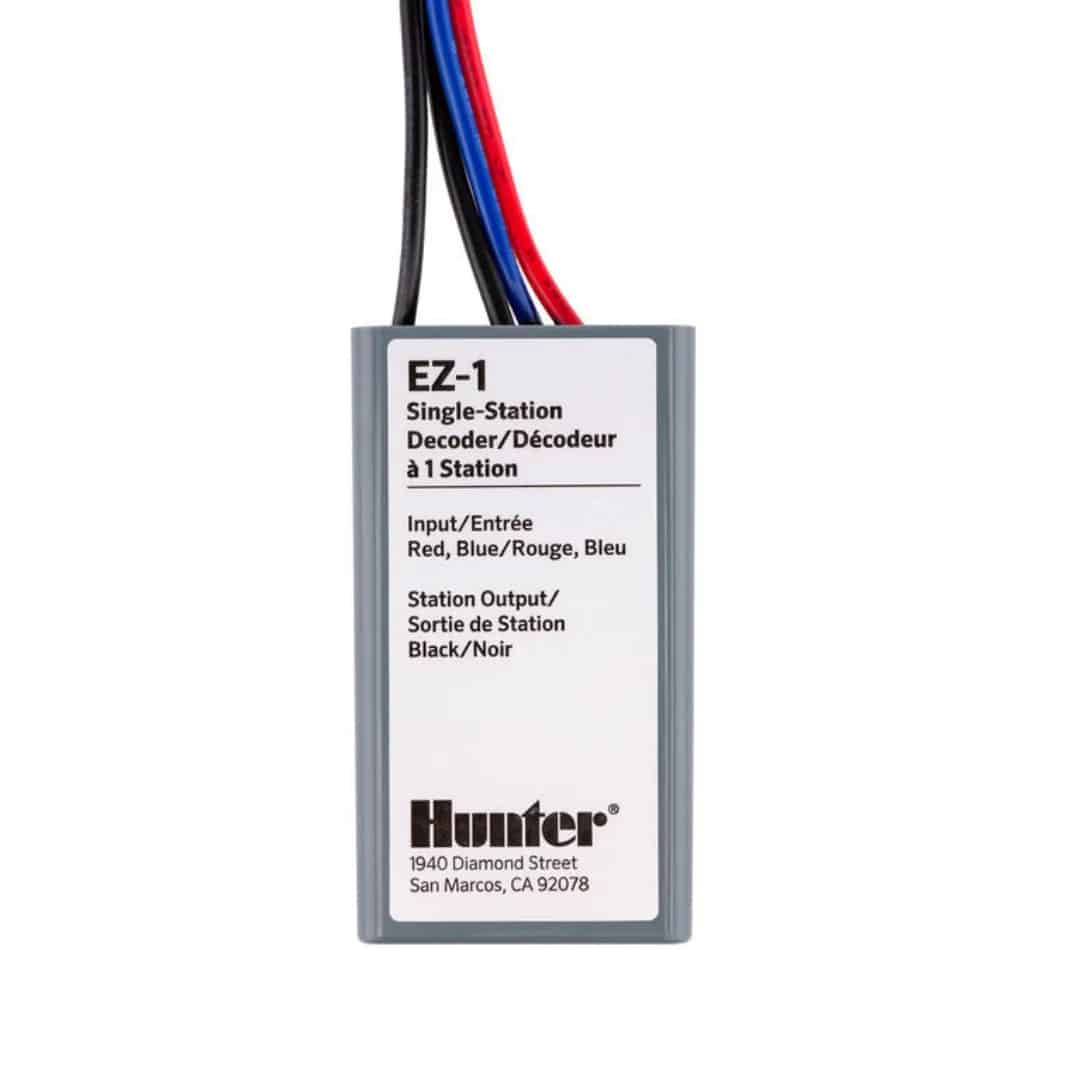

Hunter Irrigation EZ-1 Controller

Cost and complexity have often limited decoder technology to higher-end systems. However, with the revolutionary EZ Decoder System (EZDS), you get all the advantages of two-wire installations with simpler, more cost-effective technology — so you can bring the power of two-wire control to more projects than ever before. EZDS is compatible with all the features of the Hydrawise® enabled HCC controller, Centralus™ enabled ICC2 controller, and trusted Pro-C® controller. Plug in either the PC-DM or EZ-DM two-wire output modules to enable up to 28 (Pro-C) or 54 (HCC/ICC2) stations on a single pair of wires. Then simply place EZ Decoders at each valve! EZ Decoders are small, waterproof, and come with color-coded wiring and a convenient LED status light. They do not require special wire or connectors to function. Better yet, the system can coexist with conventional output modules, allowing hybrid functionality of both direct-wired valves and decoder operations in the same controller. This technology also permits easy conversion of a conventionally wired system to two-wire using the existing wiring bundle. It’s that easy!

KEY BENEFITS

Number of stations: Pro-C: Up to 28, plus master valve ICC2/HCC: Up to 54, plus master valve No special wire or connectors required No special grounding or surge arrestors required in-line to maximize time and money savings during installation Programmable decoders with no need to input individual serial numbers P/MV can activate via the two-wire path for distant master valves Permits hybrid operations of side-by-side conventional and decoder stations for added flexibility EZ-1 decoders have built-in status LED for positive diagnostics EZDT wireless, handheld diagnostic tool for EZ Decoder Systems: Detect faults and perform electrical troubleshooting in the field without uninstalling decoders Quickly read decoder status, station address, current draw, and two-wire voltage to simplify maintenance Program decoder station address via wired connection to speed up installation and save time on-site Update controller facepack or decoder module firmware via ribbon cable connection for flexibility when updating systems Communicate in your preferred language using the multilingual user interface Work reliably and efficiently on the go with power supplied by 4 AAA batteries
