FX Luminaire SRPMNT Lighting Fixture

The vibrant and versatile SRP RGBW Strip Light makes it easier than ever to illuminate stair ledges, outdoor patios, hardscape elements, and more.
When installed with the SRP-CC Color Controller, the SRP RGBW Strip Light is compatible with the next-generation Luxor Controller from FX Luminaire or any traditional low-voltage transformer for unmatched color-changing effects.
Choose from two convenient control options: Standalone or Luxor Mode. For compatibility with any low-voltage transformer, use Standalone Mode. It lets you manually set Hue, Saturation, and Intensity. Luxor Mode allows a Luxor Controller to assign a Group and set Hue, Saturation, and Intensity values.

[](https://www.hunterirrigationsupply.com/wp-content/uploads/2022/10/beauty_shot_srp-rgbw_0_0.jpg)

[SRP-CC Color Controller (order separately)](https://www.hunterirrigationsupply.com/lighting-supply/smart-controls/fx-luminaire-srp-cc-color-controller/) is required to power SRP RGBW Strip Light. See Accessories.

#### Included Accessories & Parts

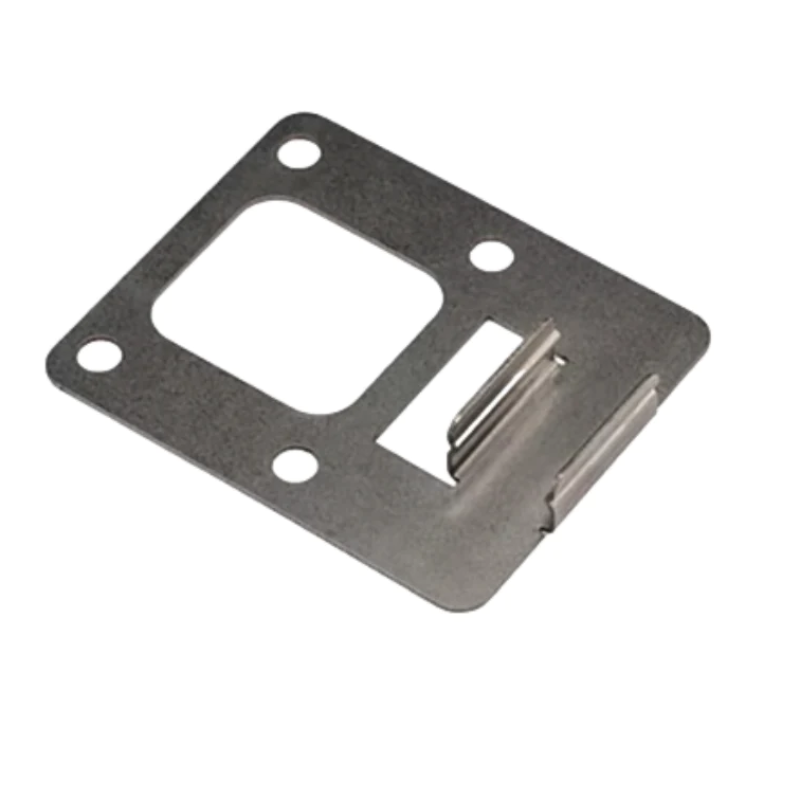

SRP-10-RGBW Includes 3" (76 mm) and 6" (152 mm) jumpers, 10' power feed, splice clamps, LED spacer, end connector, and mounting clips.

## [SRP RGBW Strip Light Dimensions](https://www.fxl.com/node/361381)


## [SRP RGBW Strip Light Specification Chart](https://www.fxl.com/node/359921)

OutputSRP RGBWTotal Lumens24.25 lm/ftInput Voltage10 to 15 VInput Power1.7 W/ftVA2.9 VA/ftEfficacy (lm/W)18.6Color Rendering Index (CRI)52Center Beam Candlepower--DimmingYes; must use SRP-CC Color Controller Primary Dimming (Transformer)-- Secondary Dimming (Fixture)--RGBW AvailableYes; Must be used with SRP-CC Color ControllerMinimum Rated Life L90 B10 (Hrs)50,000 For optimal performance, use a trailing-edge (reverse phase-cut) dimmer.

SRP RGBW Strip Light Illuminance at a DistanceDistanceCenter Beam fcBeam WidthFeet (Meters)Foot-Candles (Lux)Vertical: 115.7 °Horizontal: 115.5 °10.0' (3.1 m)2.9 fc (1.1 lx)10.5' (3.2 m)10.5' (3.2 m)20.0' (6.1 m)0.7 fc (0.3 lx)21.3' (6.5 m)21.2' (6.5 m)3.3' (1.0 m)0.3 fc (0.1 lx)31.8' (9.7 m)31.7' (9.7 m)6.7' (2.0 m)0.2 fc (0.1 lx)42.3' (12.9 m)42.2' (12.9 m)13.3' (4.1 m)0.1 fc (0 lx)53.1' (16.2 m)52.9' (16.1 m)16.7' (5.1 m)0.1 fc (0 lx)63.6' (19.4 m)63.6' (19.3 m)
